Triform 180 Hot Wire Cutter & Sculptor

Triform 180 Hot Wire Cutter & Sculptor.

Cuts and sculpts expanded polystyrene and bends sheets of HIPS up to 6mm thick.

Hot wire sculpting can be done with the tilting wire bow, enabling fixed-angle cutting at 45°, 60°, 67.5° or 90°. Alternatively, plug in the hand-held sculptor tool for free-form carving. In-line bending is carried out on the calibrated work table. Always use in well-ventilated conditions.

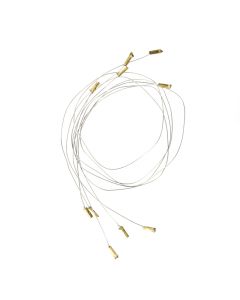

For replacement wires please see M873A & M873B.

• 180mm (7") working length (cutting)
• 300mm (12") working length (bending)
• 480mm (19") throat depth
• Work table calibrated in metric and imperial units
• 45°, 60°, 67.5° and 90° cutting angles
• Foot controlled on/off switch
• Electrical: 230/115V, 50/60Hz, 0.15kW max.
• Wire Voltage Max.: 5V
• Dimensions: 510 x 410 x 360mm (W x D x H)
• Weight: 12kg
• Supplied with a single phase plug as standard. Please phone if you'd prefer three phase
