Creative CornerUltrasonic Transducers
As low as
£3.99
£4.79
Only %1 left
Web Code
Select an option
QTY:
In stock

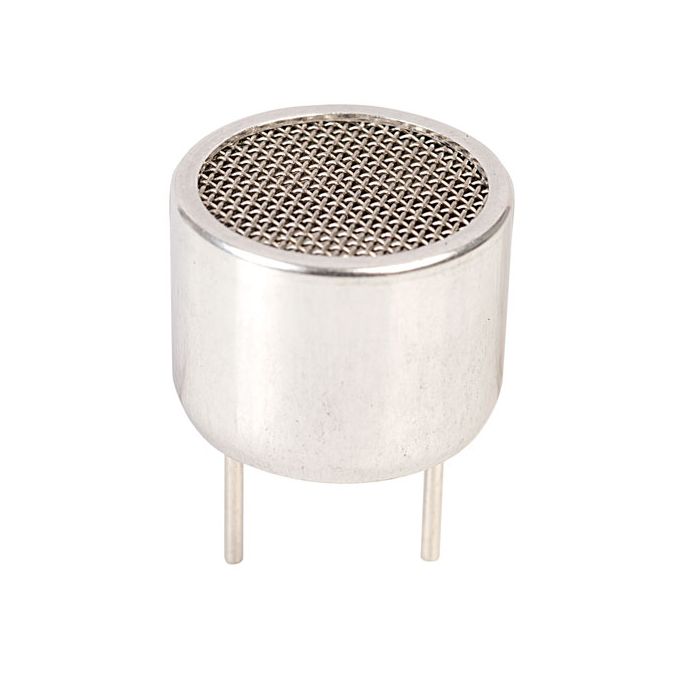

Ultrasonic Transducers. Each
An ultrasonic transmitter and high sensitivity receiver designed for sending and receiving continuous or modulated waves in the 40kHz region through air.
Applications include remote control, data transmission etc.
These units are not watertight.
Sensitivity: 106db-65db.
Resonant frequency: 40kHz ffl 1kHz.
Directional angle: approx. 20°.
Max input voltage: 20Vrms.
Impedance: 500Ω 30k.
Capacitance: 1100pF ffl 20%.
16mm diameter, 22mm height.
Applications include remote control, data transmission etc.
These units are not watertight.
Sensitivity: 106db-65db.
Resonant frequency: 40kHz ffl 1kHz.
Directional angle: approx. 20°.
Max input voltage: 20Vrms.
Impedance: 500Ω 30k.
Capacitance: 1100pF ffl 20%.
16mm diameter, 22mm height.
| Catalogue Page Number | Dryad Education 2022 |
|---|
This product is classified as an 'article' and therefore by law does not require a safety data sheet under current legislation.
